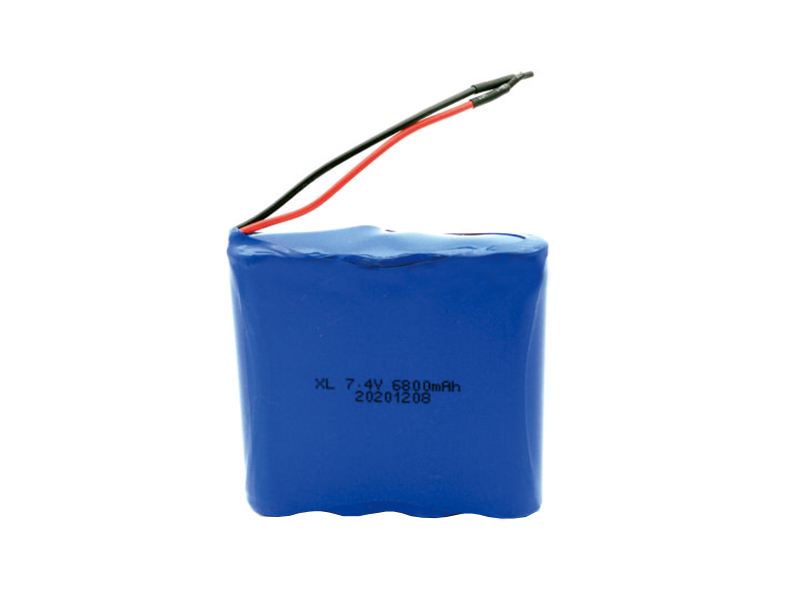

7.4V cylindrical lithium battery product model: XL 7.4V 6800mAh
7.4V cylinder lithium battery technical parameters (specific design according to customer requirements - voltage / capacity / size / line)
Single battery model: 18650
·Voltage of single cell: 3.7V
·Nominal voltage after battery pack combination: 7.4V
·Capacity of single battery: 3.4Ah
·Battery combination mode: 2 strings 2 parallels
·Voltage range of battery after combination: 5.0~8.4V
·Battery capacity after combination: 6.8Ah
·Battery pack power: 50.32Wh
·Battery pack size: 20 * 74 * 67mm
·Maximum discharge current: < 6.8A
·Instantaneous discharge current: 13~20A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: ＞ 500 times
·Main chips: (Seiko, Ti)
7.4V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
