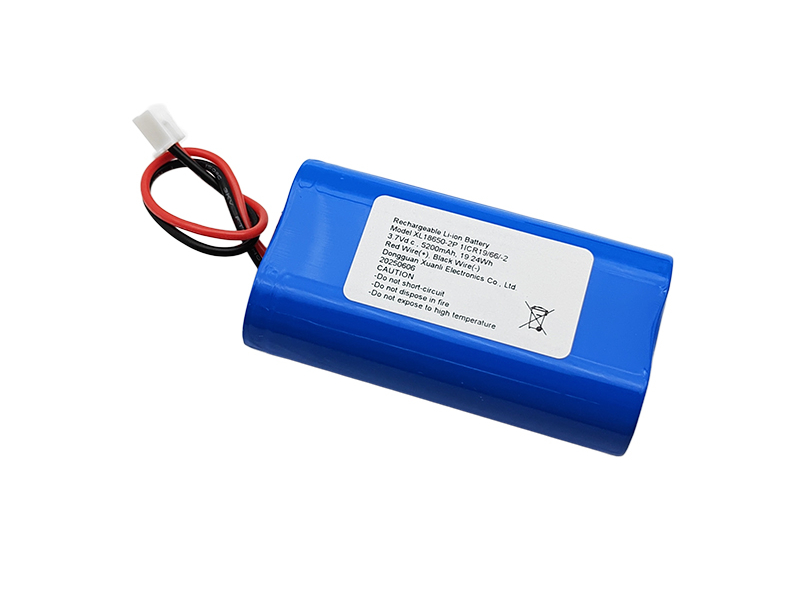

3.7V cylindrical lithium battery product model: XL 3.7V 5200mAh
Technical parameters of 3.7V cylindrical lithium battery (Specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 18650
·Single cell battery voltage: 3.7V
·Nominal voltage of the battery pack after combination: 3.7V
·Single cell battery capacity: 2.6Ah
·Combination method: 1 series 2 parallel
·Voltage range of the combined battery after combination: 3.0~4.2V
·Capacity of the combined battery after combination: 5.2Ah
·Battery pack power: 19.24Wh
·Battery pack size: 20*38.5*69mm
·Maximum discharge current: <5.2A
·Instantaneous discharge current: 10.4~15.6A
·Maximum charging current: 0.2~0.5C
·Number of charge and discharge cycles: >500 times
·Main chips: (Seiko, TI)
3.7V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
