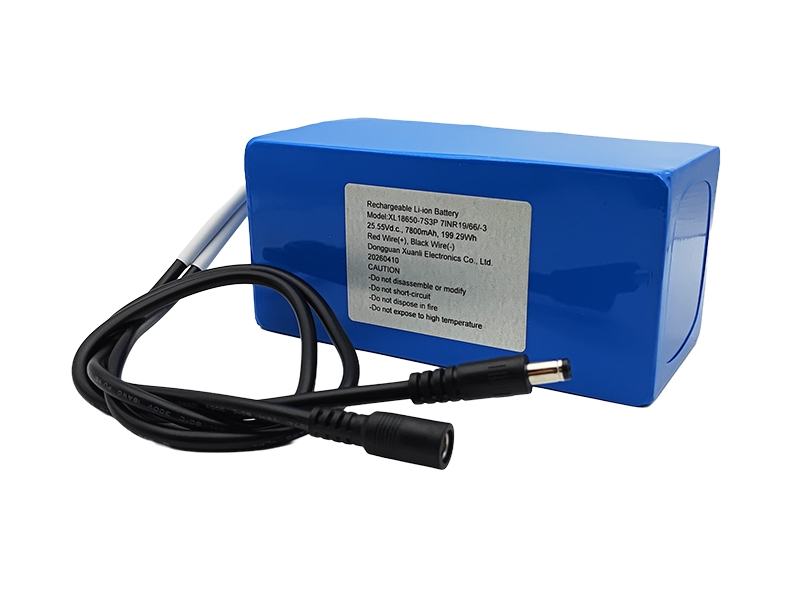

25.55V cylindrical lithium battery product model: XL 18650 25.55V 7800mAh
25.55V cylindrical lithium battery technical parameters (specific design according to customer requirements - voltage/capacity/dimension/wiring)
Single battery model: 18650
·Single cell battery voltage: 3.65V
·Nominal voltage of the battery pack after combination: 25.55V
·Single cell battery capacity: 2.6Ah
·Combination method: 7 series 3 parallel
·Voltage range of the combined battery after combination: 17.5~29.4V
·Capacity of the combined battery: 7.8Ah
·Battery pack power: 199.29Wh
·Battery pack size: 65*65*163mm
·Maximum discharge current: <7.8A
·Instantaneous discharge current: 15.6~23.4A
·Maximum charging current: 0.2~0.5C
·Number of charge and discharge cycles: >500 times
·Main chips: (Seiko, TI)
25.55V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All bat🐼tery products are tested before leaving the factory
