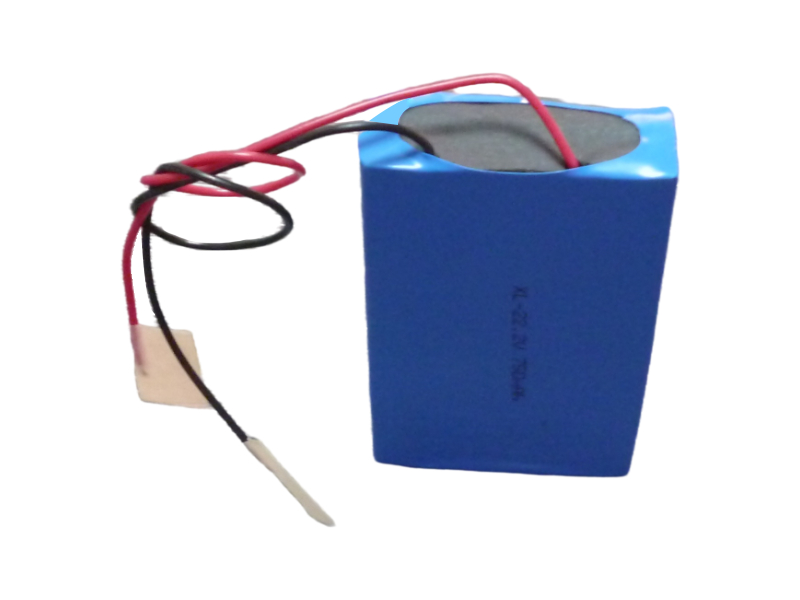

22.2V Cylindrical Lithium Battery Product Model: XL 22.2V 750mAh
Technical parameters of 22.2V cylindrical lithium battery (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 14500
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 22.2V
·Single battery capacity: 0.75Ah
·Battery combination: 6 strings and 1 parallel
·Battery voltage range after combination: 15~25.2V
·Battery capacity after combination: 0.75Ah
·Battery pack power: 16.65Wh
·Battery pack size: 16*88*53mmmm
·Maximum discharge current: <0.75A
·Instantaneous discharge current: 1.5~2.25A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
22.2V cylindrical lithium battery
· Conform to relevant national or international battery standards
🐻;· All battery products are ⛦ tested before leaving the factory
