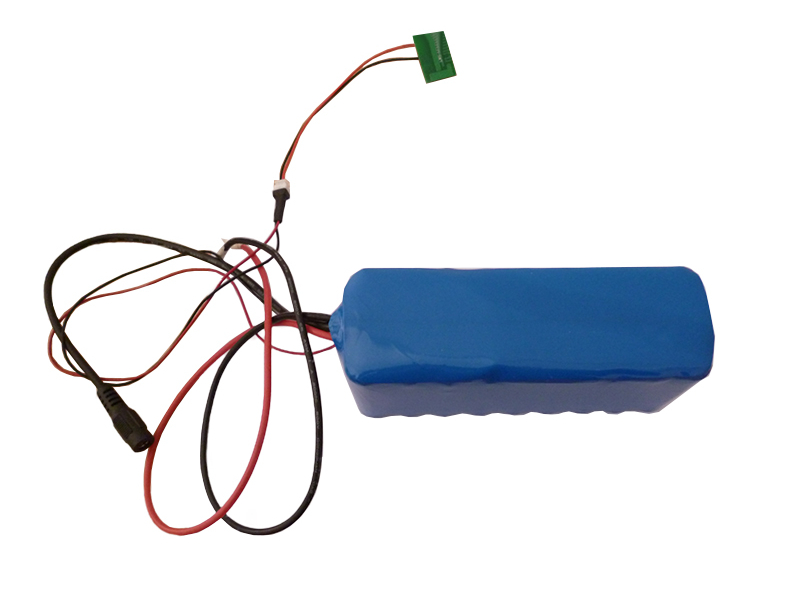

14.8V cylindrical lithium battery product model: XL 14.8V 23400mAh
14.8V cylinder lithium battery technical parameters (specific design according to customer requirements - voltage / capacity / size / line)
Single battery model: 18650
· Single battery voltage: 3.7V
· Nominal voltage of battery pack after combination: 14.8V
· Capacity of single battery: 2.6Ah
· Combination method: 4 series 9 parallel
· Voltage range of combined batteries: 12~16.8V
· Capacity of combined batteries: 23.4Ah
· Battery pack power: 346.32Wh
· Battery pack size: 76*169*69mm
· Maximum discharge current: < 23.4A
· Instantaneous discharge current: 46.8~70.2A
· Maximum charging current: 0.2~0.5C
· Number of charge/discharge cycles: > 500 times
14.8V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
