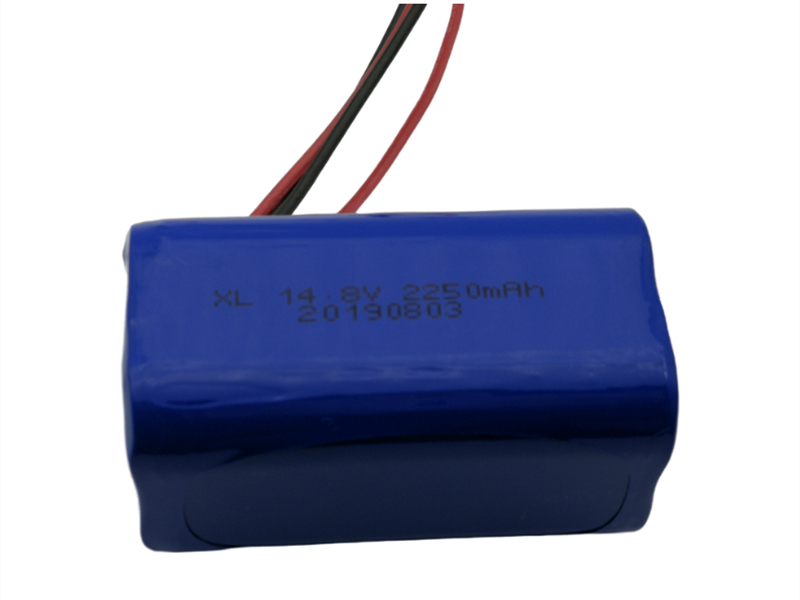

14.8V Cylindrical Lithium Battery Product Model: XL 14.8V 2250mAh
Technical parameters of 14.8V cylindrical lithium battery (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
· Single battery voltage: 3.7V
· Nominal voltage after the battery pack is assembled: 14.8V
· Single battery capacity: 2.25Ah
· Battery combination: 4 strings and 1 parallel
· Battery voltage range after combination: 12~16.8V
· Battery capacity after combination: 2.25Ah
· Battery pack power: 33.3Wh
· Battery pack size: 39*39*68mm
· Maximum discharge current: <2.25A
· Instantaneous discharge current: 4.5~6.75A
· Maximum charging current: 0.2~2C
· Charge and discharge times: >500 times
· Main chip: (Seiko, TI)
14.8V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
