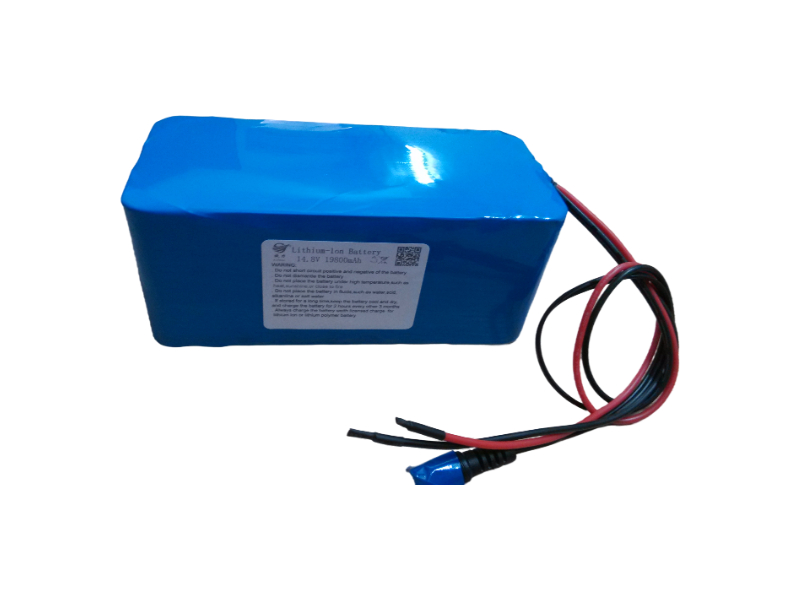

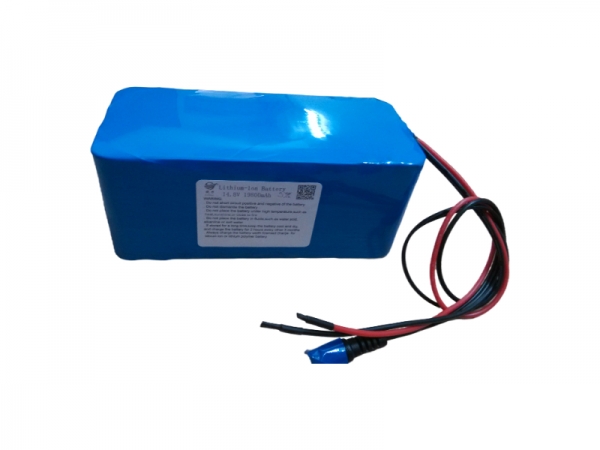

14.8V cylindrical lithium battery Product model: XL 14.8V 19800mAh
Technical parameters of 14.8V cylindrical lithium battery (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 14.8V
·Single battery capacity: 2.2Ah
·Battery combination mode: 4 strings and 9 parallels
·Battery voltage range after combination: 10~16.8V
·Battery capacity after combination: 19.8Ah
·Battery pack power: 293.04Wh
·Battery pack size: 76*169*69mm
·Maximum discharge current: <19.8A
·Instantaneous discharge current: 39.6~59.4A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
14.8V cylindrical lithium battery
· Conform to relevant national or international battery standards
· A♉ll battery products are&n൲bsp; tested before leaving the factory
