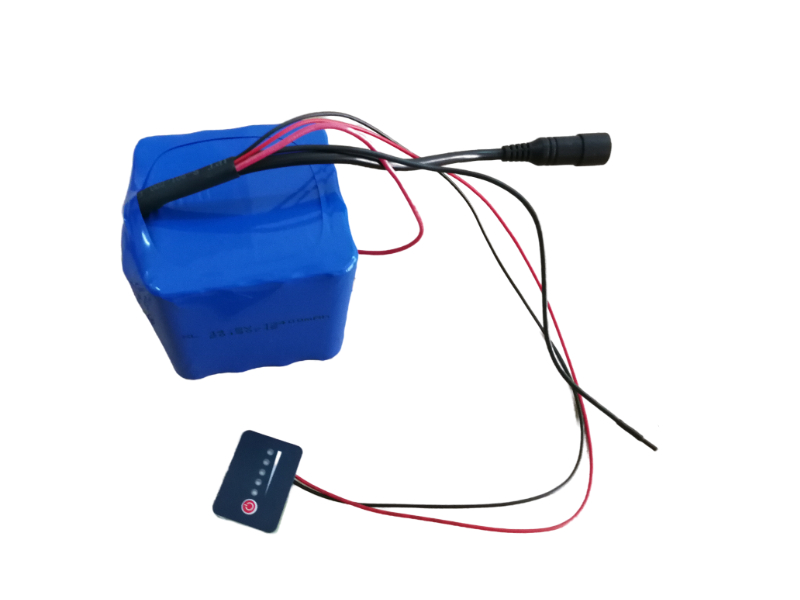

14.8V cylindrical lithium battery product model: XL 14.8V 13400mAh
14.8V cylinder lithium battery techꦡnical parameters (specific design according to customer requirements - voltage / capacity / size / line)
Single battery model: 18650
·Single cell battery voltage: 3.7V
·Nominal voltage of the battery pack after combination: 14.8V
·Single cell battery capacity: 3.35Ah
·Combination method: 4 series 4 parallel
·Voltage range of the combined battery after combination: 12~16.8V
·Capacity of the combined battery after combination: 13.4Ah
·Battery pack power: 198.32Wh
·Battery pack size: 76*77*69mm
·Maximum discharge current: <13.4A
·Instantaneous discharge current: 26.8~40.2A
·Maximum charging current: 0.2~0.5C
·Number of charge and discharge cycles: >500 times
·Main chips: (Seiko, TI)
14.8V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
