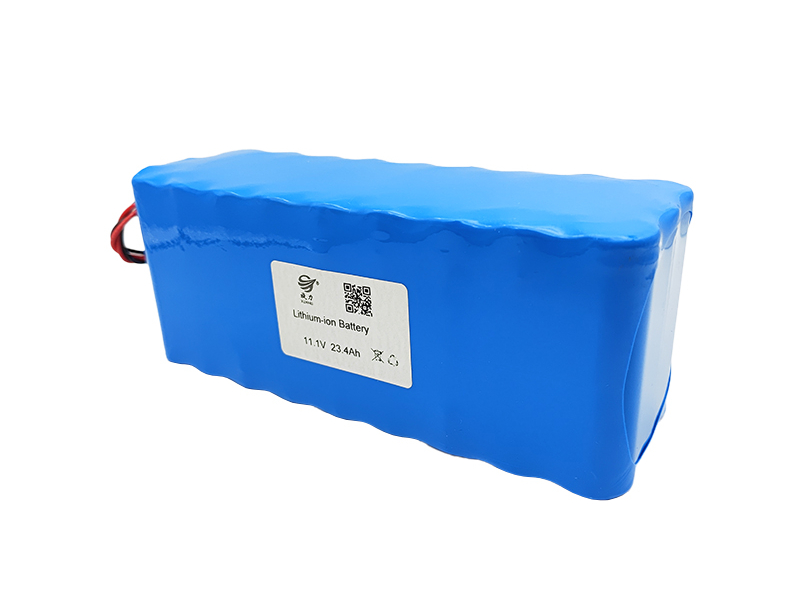

11.1V Cylindrical lithium battery Model: XL 11.1V 23400mAh
11.1V cylindrical lithium battery Technical parameters (can be designed according to customer requirements - voltage/capacity/size/line)
Battery model: 18650
· Voltage of single battery: 3.7V
· Nominal voltage after battery pack combination: 11.1V
· Battery capacity: 2.6Ah
· Battery combination: 3 strings and 9 parallel
· Battery voltage range after combination: 9.0~12.6V
· Combined battery capacity: 23.4Ah
· Battery pack power: 259.74Wh
· Battery pack size: 56*68*170mm
· Maximum discharge current: <23.4A
· Instant discharge current: 48~72A
· Maximum charging current: 0.2~2C
· Charge and discharge times: > 500 times
· Main chips: (Seiko, TI)
11.1V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
